UHF CU Etched antenna

2015-4-24

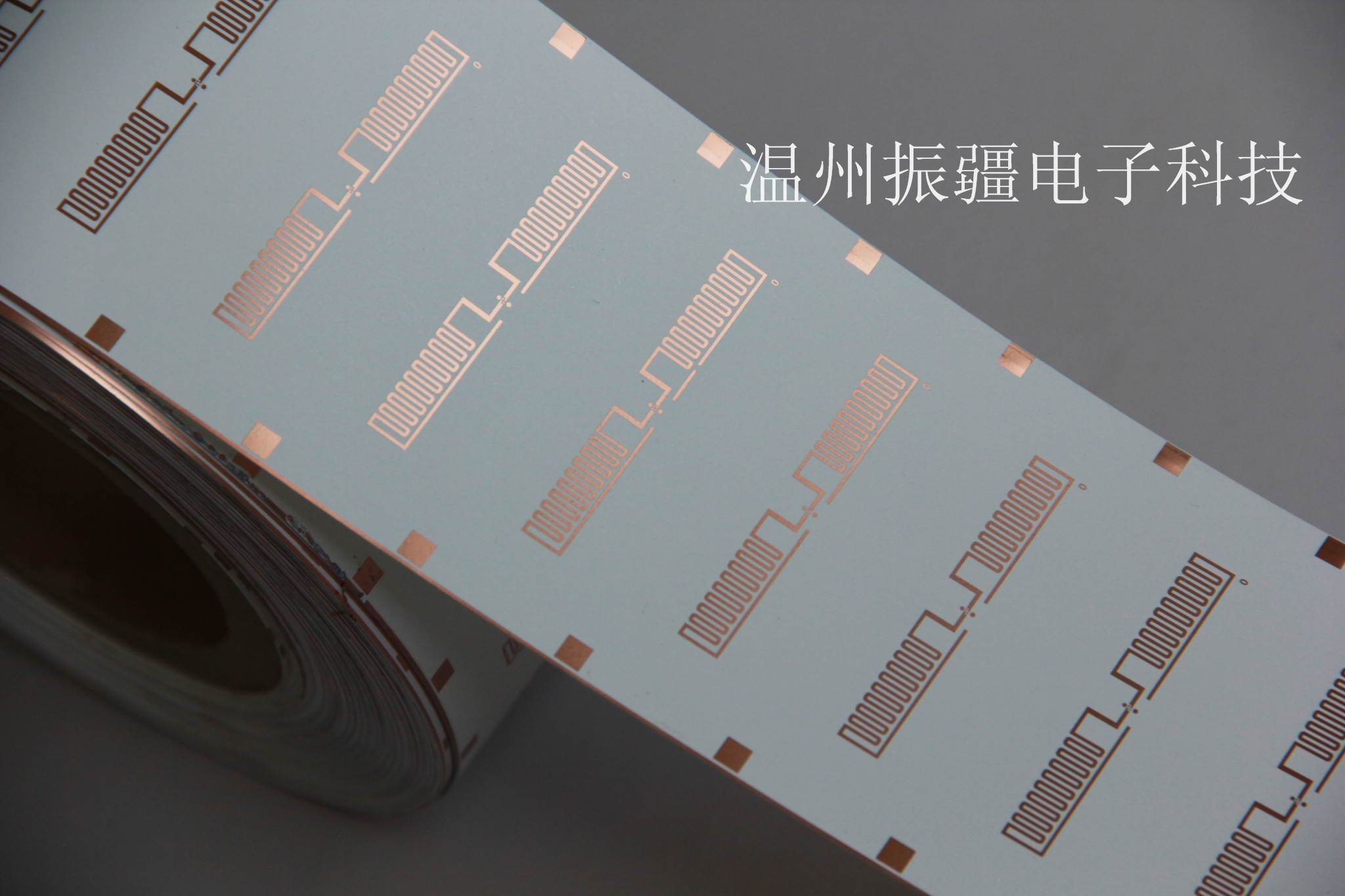

Ultra high frequency copper etching antenna

Plan NO.1

Customer provides design drawing of antenna, its design software is AUTO CAD (.dwg). If so, we can give plate charge and quotation on that day. We can sign contract each other after confirming all details, in one working day artwork drawing will be provided for customer’ confirmation, as soon as the customer confirms the drawing and also pay plate charge, we will start making plate and produce samples, 1000 pieces of samples for free will be given to customer for confirming.

Plan NO.2

If customer lacks of experience of designing antenna, you need to provide us the following items: 1. antenna size you want( if square shape, please tell us length(mm)*width(mm), if round shape, please give us ￠？mm) 2. Which type of chip will be bonded (for example: Ultralight, ICODE 2) 3.the model of bonded machines and other necessary information.

When we get the above information, we will show you the design charge (HF antenna design is free), plate charge and quotation on that day. After we sign contract with you and get the all payment, design drawing and artwork drawing will be provided to customer for confirmation (one week for HF antenna, four weeks for UHF antenna), if they are ok for you, we will start making plate and produce samples, 1000 pieces of samples for free will be given to customer for confirming.
